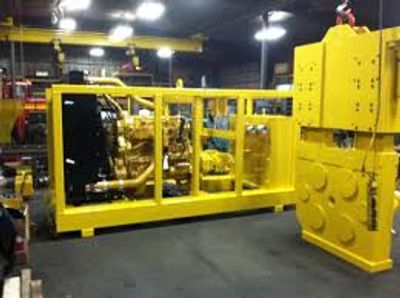

Vibrator Specifications
Type Hydraulic
Hydraulic Horsepower 280
Frequency 1200 VPM
Amplitude 7/8 inch
Eccentric movement 2800 in lbs
Max line pull for extraction 30 ton
Pile clamping force 75 ton
Height with head 122 inch
Length 66 inch
Throat Width 12 inch
Weight with standard clamp 9300 lbs
Optional counterweight 3600 lbs

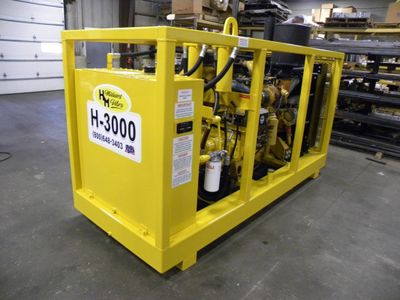

Power Pac Specifications
Engine 6068TF John Deere
Rated HP 300
Fuel tank capacity 80 gallon
Hydraulic tank capacity 120 gallon
Eccentric pump capacity 130 GPM
Clamp pump capacity 8 GPM
Hydraulic filters 10 Micron
Length 124 inch
Width 48 inch
Height 60 inch
Weight 8700 lbs
