Distributors for H&M Vibratory Driver/Extractors

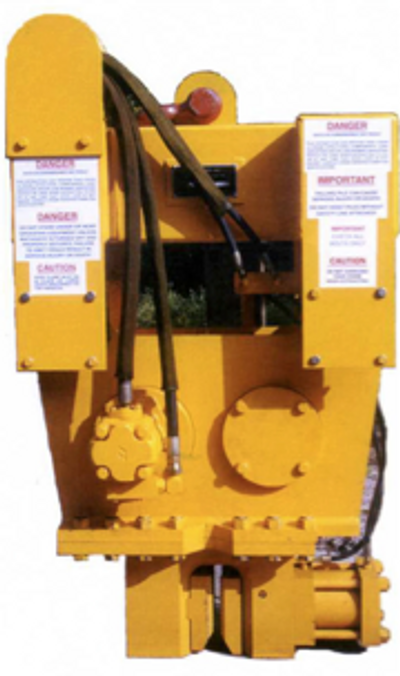

 Vibrator Specifications


Type                                                                                    Hydraulic

Horsepower                                                                                   60

Frequency                                                                         1800 VPM

Amplitude                                                                             5/8 inch

Eccentric Moment                                                            345 in lbs

Pile Clamping Force                                                               25 ton

Height with Clamp                                                                51 inch

Length                                                                                     35 inch

Throat Width                                                                          10 inch

Weight with Standard Clamp                                            1950 lbs


 Power Pac Specifications


Engine                                                                  4045T John Deere

Rated HP                                                                                         99

Fuel Tank Capacity                                                            50 gallon

Hydraulic Tank Capacity                                                  55 gallon

Eccentric Pump Capacity                                                   30 GPM

Clamp Pump Capacity                                                          7 GPM

Hydraulic Filters                                                              10 micron

Length                                                                                   84 inch

Width                                                                                     42 inch

Height                                                                                    56 inch

Weight                                                                                 3800 lbs
