Distributors for H&M Vibratory Driver/Extractors

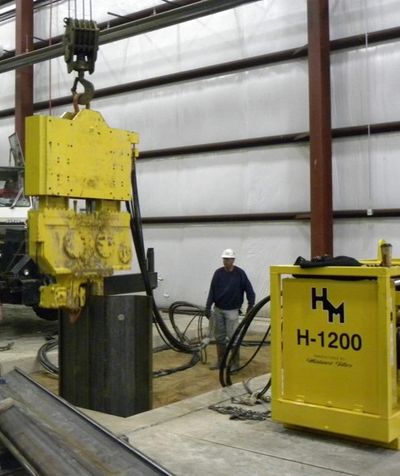

Vibrator Specifications


Type                                                                                 Hydraulic

Hydraulic Horsepower                                                            140

Frequency                                                                      1250 VPM

Amplitude                                                                          7/8 inch

Eccentric movement                                                   1200 in lbs

Max line pull for extraction                                               20 ton

Pile clamping force                                                             57 ton

Height with head                                                               99 inch

Length                                                                                 55 inch

Throat Width                                                                      12 inch

Weight with standard clamp                                         5500 lbs

Optional counterweight                                                 3600 lbs


Power Pac Specifications


Engine                                                              6068TF John Deere

Rated HP                                                                                   170

Fuel tank capacity                                                          62 gallon

Hydraulic tank capacity                                              100 gallon

Eccentric pump capacity                                                 60 GPM

Clamp pump capacity                                                        8 GPM

Hydraulic filters                                                            10 Micron

Length                                                                               110 inch

Width                                                                                   42 inch

Height                                                                                  55 inch

Weight                                                                               5000 lbs
