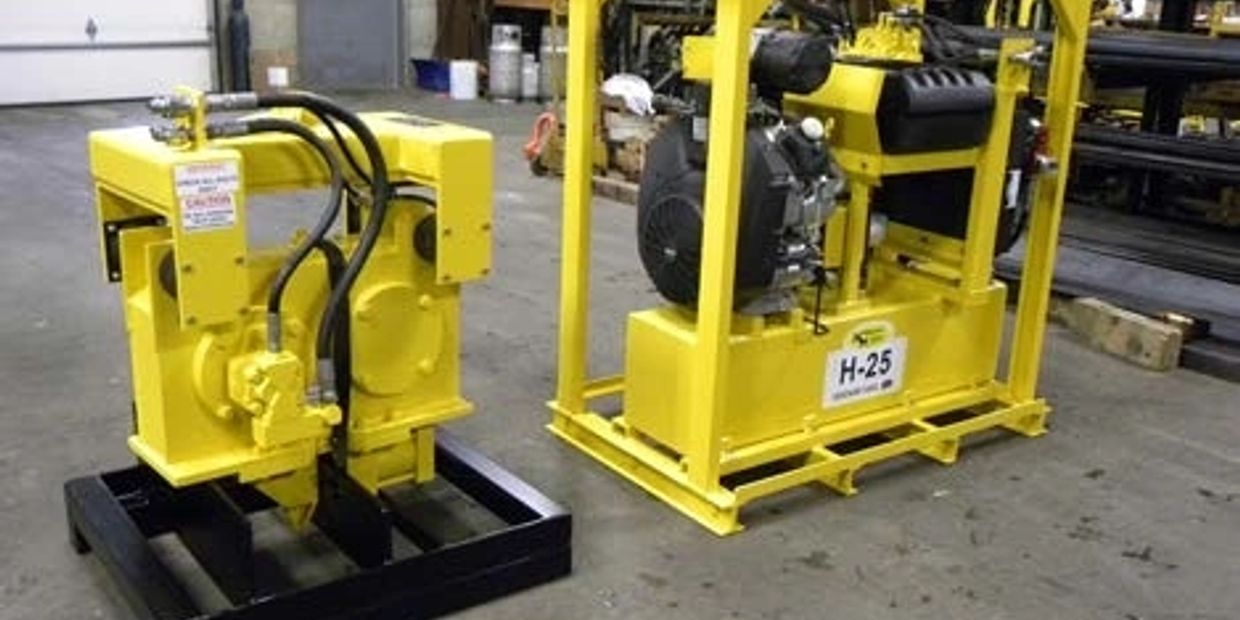

Distributors for H&M Vibratory Driver/Extractors


Vibrator Specifications


Type                                                                                           Hydraulic

Hydraulic Horsepower                                                                        20

Frequency                                                                                2000 VPM

Amplitude                                                                                    3/8 inch

Eccentric movement                                                                 85 in lbs

Pile clamping force                                                                       15 ton

Height with clamp                                                                       39 inch

Length                                                                                           33 inch

Throat Width                                                                                10 inch

Weight with standard clamp                                                     950 lbs



Power Pac Specifications



Engine                                                                                             Kohler

Rated HP                                                                                               25

Fuel tank capacity                                                                   10  gallon

Hydraulic tank capacity                                                          25 gallon

Eccentric pump capacity                                                        16 G.P.M.

Hydraulic filters                                                                      10 Micron

Length                                                                                           54 inch

Width                                                                                             24 inch

Height                                                                                            34 inch

Weight                                                                                           700 lbs
